KP-1630 KNOB AND PULL DRILLING STATION
Scroll down to see a web video of t
he Knob & Pull Drilling Station in Action!


  • STREAMLINE YOUR HARDWARING DEPARTMENT!
  • KEEP MISTAKES TO AN ABSOLUTE MINIMUM!
  • Centering device finds exact center of drawer front.
  • Alternate between 1 hole for knobs and 2 holes for pulls.
  • Fence stops can be set independently to specific locations.
  • Stops provide perfect mirror images for paired doors.
  • Backer template eliminates bit blow out.
  • Counter boring feature can be provided.


Adjustable Lead Screw
Infinite Settings from
2-1/2" to 6" On Center
Standard Features
  • 2-way Centering Device
  • Hold Down Clamp
  • Auto Drilling Cycle
  • Mirror Imaging Stops
  • Filter, Regulator, & Lubricator
  • Rule & Indicator for Fence & Stops
  • Position Locks for Fence & Stops
  • Rule & Indicator for Drills

Optional Features (Optional Floor Stand Shown Above):

Drilling Specifications :

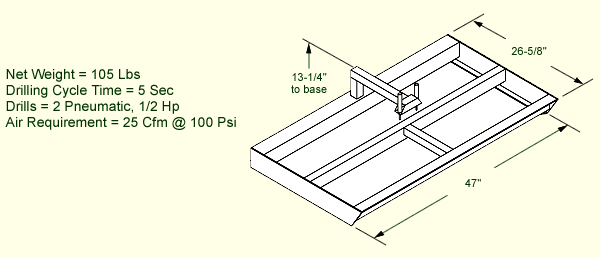

Machine Specifications :


WATCH WEB VIDEO OF KP-1630 KNOB AND PULL DRILLING STATION:


KP-1630 KNOB AND PULL DRILLING STATION
