SN-1100 DRAWER BOX NOTCHER
Scroll down to see a web video of the Drawer Notcher in Action!

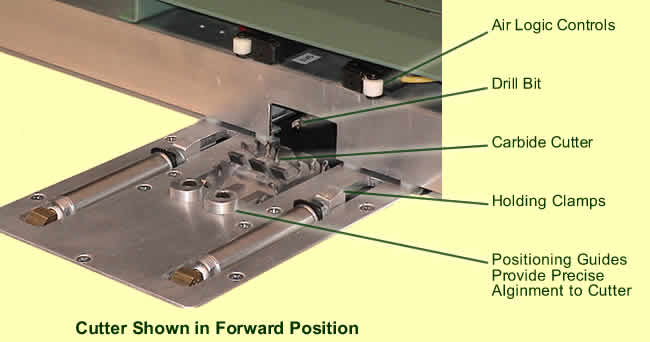

  • This uniquely designed air and electric machine cuts the notch and drills the hole for undermounted drawer guides.
  • Hands free operation is provided by the automatic cycle which effortlessly brings the cutter and drill into the drawe, while the clamps secure the drawer in position.
  • The positioning guide indexes from the inside of the drawer, allowing for variances in material thickness.
  • The carbide tipped cutter provides a clean cut and is available in 1-1/4" or 2" width.

Standard Features:

O

  • Welded Steel Construction
  • High Impact Polymer Table
  • 1 Hp Electric Saw Motor
  • Magnetic Motor Starter (Overload Protected)
  • 4-1/2" Dia. Carbide Cutter
  • Two Air Drill Motors
  • Auto Cutting Cycle (Foot Pedal Operation)
  • Powered Feed (Variable)
  • Hold Down Clamps (Hands Free Operator)
  • Filter/Regulator and Lubricator
  • Magnetic Motor Starter (Overload Protected)
  • Low Air Pressure Shut Down
  • Emergency Shut Down
  • Dust Collection Hopper
O

Machine Specifications:

Cutting Cycle = 5 seconds/Notch
Arbor = 5/8 Dia, 3000 RPM
Cutter Motor = 1 Hp TEFC, 110 V / 220 V .1Ph
Drill Motors = 1/3 Hp, *7.5 Cfm @ 100 Psi

Table = 54" Wd., 17" Dp., 36" Ht.
Overall Dim. = 54" Wd., 27" Dp., 39" Ht.
Net Weight = 236 Lbs
 (* Based on 160 Boxes / Hour)
